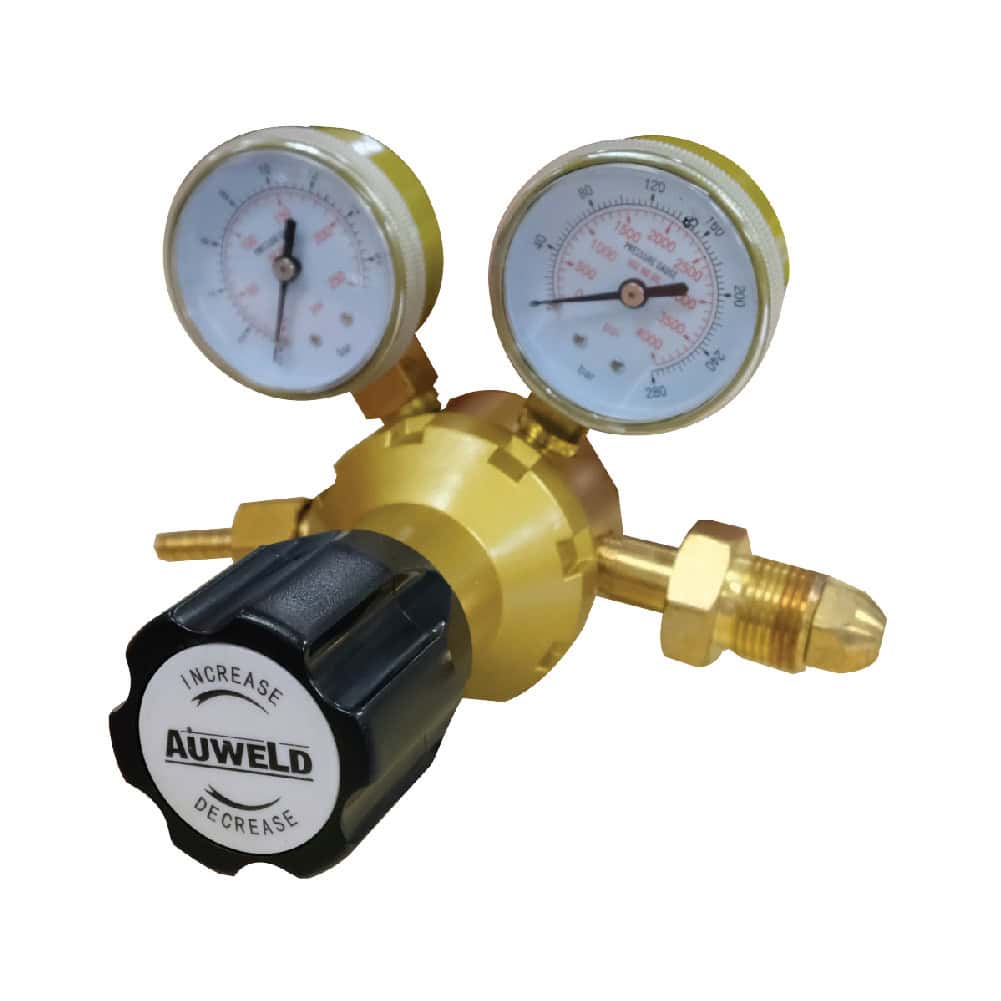

AUWELD 202 PREMIUM TYPE REGULATOR
- Premium Type
- Single- stage regulator
These regulators are designed to provide you with excellent performance, and are robust, durable and safe. The tested regulator is protected by a fully encapsulated filter. The single-stage regulator has a bottom inlet and an integrated pressure relief valve. The zinc die-cast valve cover is protected by double-layer powder coating to ensure corrosion resistance in corrosive environments.
Product Description:
- Product Material : Body and housing cap are machined from class “A” brass bar stock, sintered bronze inlet filter
- Characteristics : Single stage construction, stem type seat assembly for more reliable performance, light to medium duty
- Applications: It can apply to in industrial and laboratory applications, non-corrosive gases, hydrocarbon service
Product Specification:
Model: 202-10M-OX
- Product Code: A5131220201
- Gas: Oxygen
- Pressure Inlet Gauge: 0 – 4500 PSI
- Max. Delivery Pressure: 200 PSI
- Working Pressure: 0 – 10 bar
- Inlet Connection: CGA 580
Model: 202-1.5M-AC
- Product Code: A5131220202
- Gas: Acetylene
- Pressure Inlet Gauge: 0 – 400 PSI
- Max. Delivery Pressure: 30 PSI
- Working Pressure: 0 – 1.5 bar
- Inlet Connection: CGA 510
Picture are for illustration purpose only, actual may vary. Price and specifications are subject to change without prior notice.
