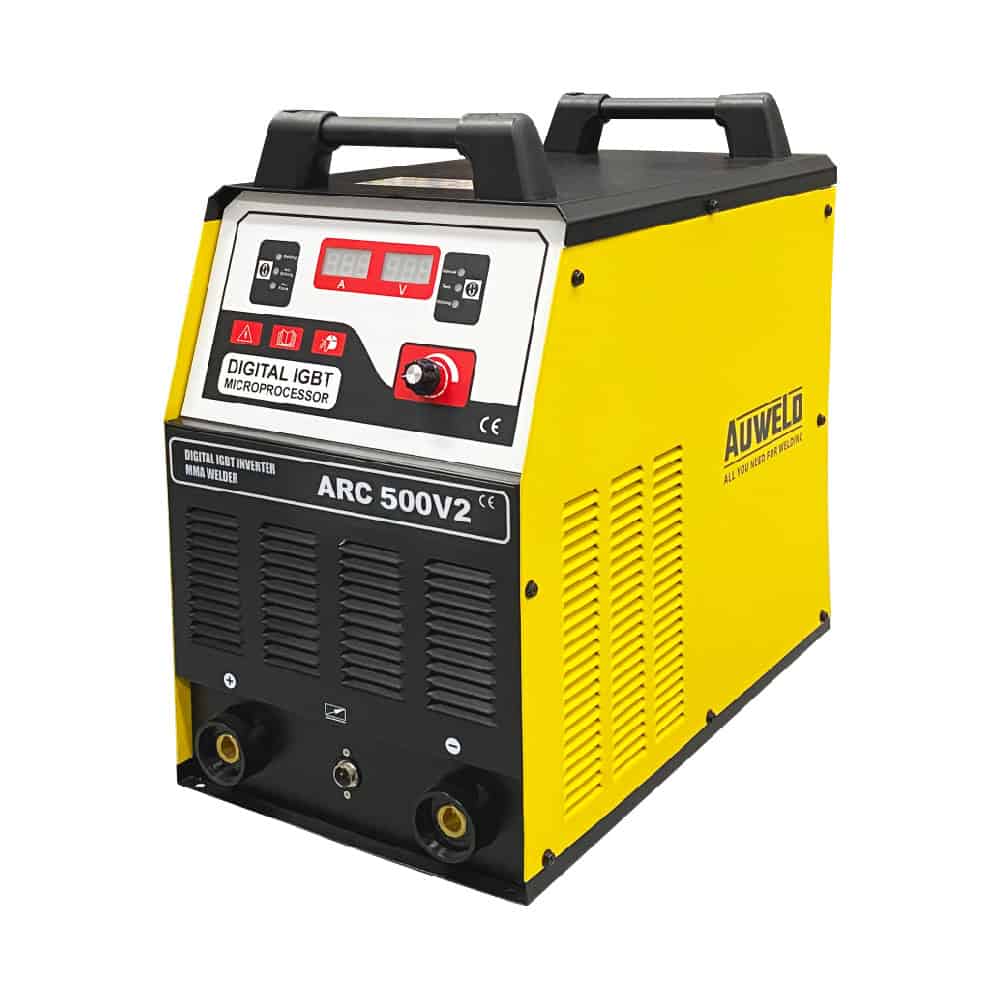

AUWELD ARC-500V2 WELDING MACHINE 3PH/415V

Product Specification:

• Welding Process : MMA (SMAW) , Lift TIG
• Input Power Voltage (V) : 415V±10%
• Rated Input Power Capacity (kVA) : 25.3
• Input Voltage Frequency (Hz) : 50/60
• No Load Voltage (V) : 67.5
• Output Current Voltage (A) : 20 – 500
• Adjustment Range (10A/1) : 0 – 20
• Insulation Class : F
• Protection Class : IP21S
• Duty Cycle (%) : 60
• Power Factor : 0.93
• Efficiency (%) : 85
• Product Dimensions : 500mm x 280 mm x 435 mm
• Product Weight : 24.5 kg
• Industrial Application : Shipyard, Oil & Gas

Product Features:

• Characteristics; high efficiency, compact, low energy consumption, and good dynamic, stable arc, continuous
  adjustable current and more.
• Protective function; protection for over voltage, over current, over heat to ensure safety and durability
• Various welding materials; acidic, basic and cellulose rod which are used for stainless steel, alloy steel, carbon steel, copper, and other nonferrous metal welding.
• Advantages compared to other; easy installation and operation.

Include Item(s):

• 1 pc Electrode Holder with Welding Cable (2.5m)
• 1 pc Earth Clamp with Welding Cable (2.5m)

Picture are for illustration purpose only, actual may vary. Price and specifications are subject to change without prior notice.
