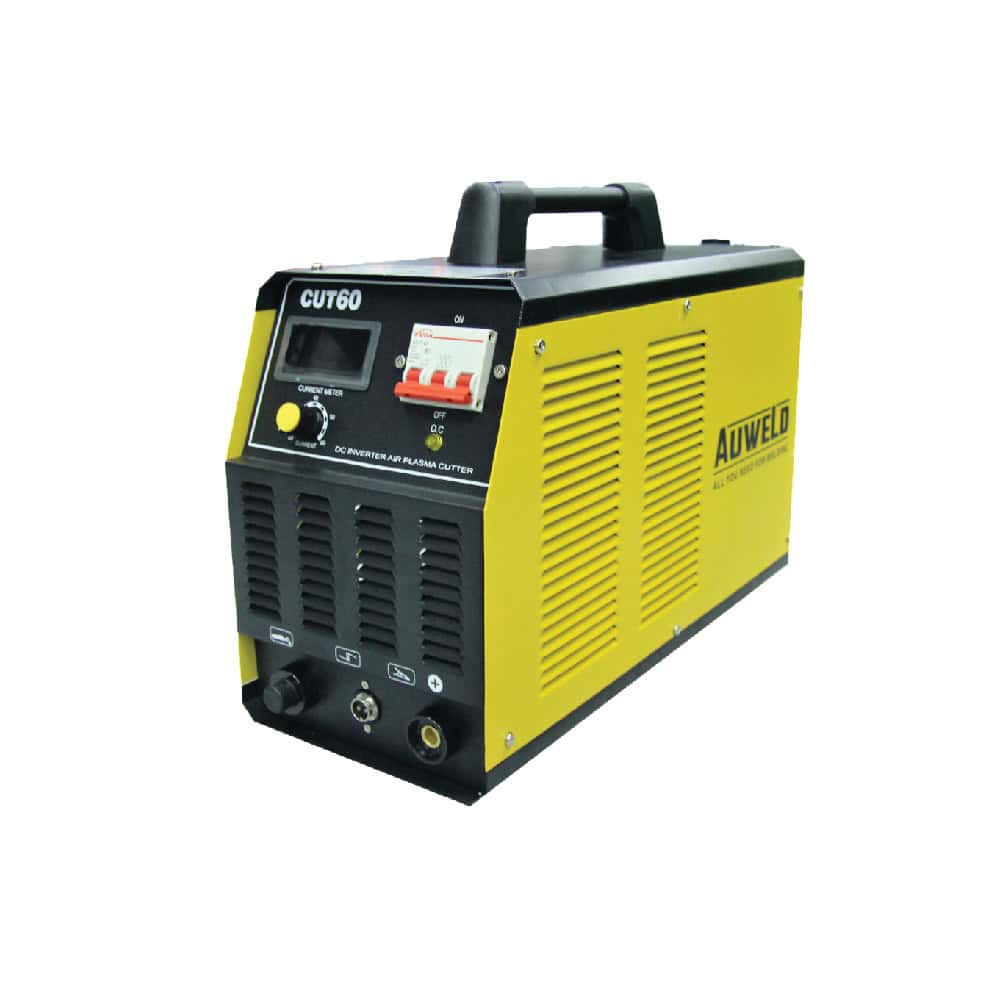

AUWELD CUT60 PLASMA CUTTING MACHINE

Product Specification:

• Welding Process : Air Plasma Cutting
• Input Power Voltage (V) : Three Phase, AC380V±15%
• Input Voltage Frequency (Hz) : 50/60
• Rated Input Power Capacity (kVA) : 7.9
• Rated Input Current (A) : 12
• Output Current Range (A) : 20 – 60
• Rated Output Voltage (V) : 104
• No Load Voltage (V) : 240
• Duty Cycle (%) : 60
• Post-gas Time (s) : 2 – 10
• Max Cutting Thickness (mm) : 25
• Arc-Striking : Touch
• Air Pressure (MPa) : 0.4 – 0.6
• Power Factor (%) : 0.93
• Insulation Class : F
• Product Dimensions : 400mm x 195mm x 270mm
• Product Weight : 9 kg
• Industrial Application : Maintenance Repair, Metal Fabrication

Product Features:

• Low cost and energy saving.
• Pulse-width Modulation (PWM) technology; high frequency, high cutting speed.
• Post-flow Cooling Circuit; extend the life of the consumables and torch by cooling them with post-flow air after the trigger is released (15-20s).
• Long consumable life; new heavy duty electrode and nozzle design save your money in the long run basis.
• Adjustable cutting current; application to different material, thickness, and cutting speed.
• Thermal overload protection with indicator light; helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.

Include Item(s):

• 1 pc AG60 Plasma Torch (5m)
• 1 pc Welding Cable with Earth Clamp (2m)
• 1 pc Air Filter ; 1pc Air Hose (1m)
• 2 pcs Hose Clips

Picture are for illustration purpose only, actual may vary. Price and specifications are subject to change without prior notice.
