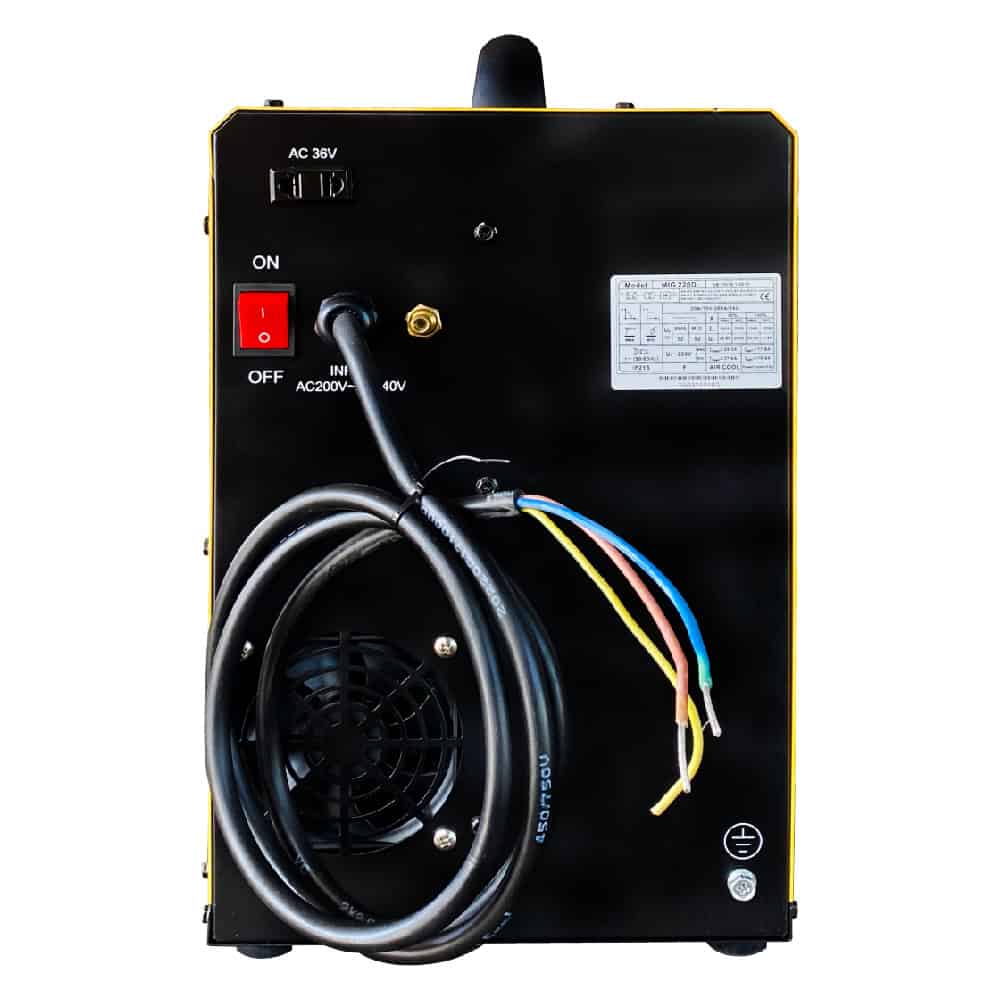

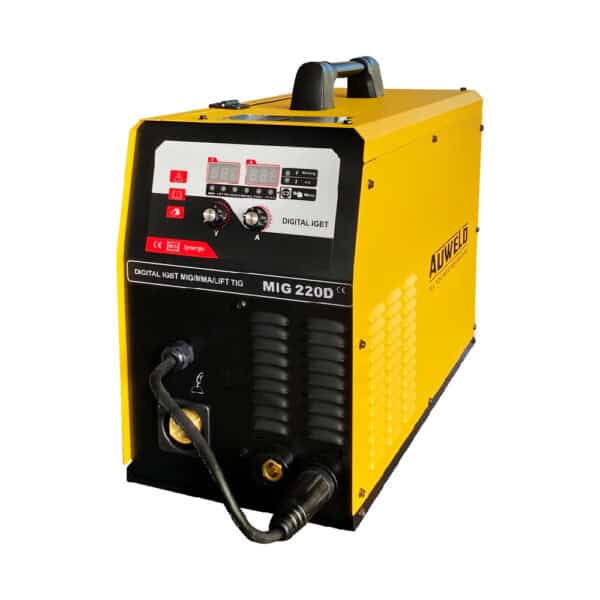

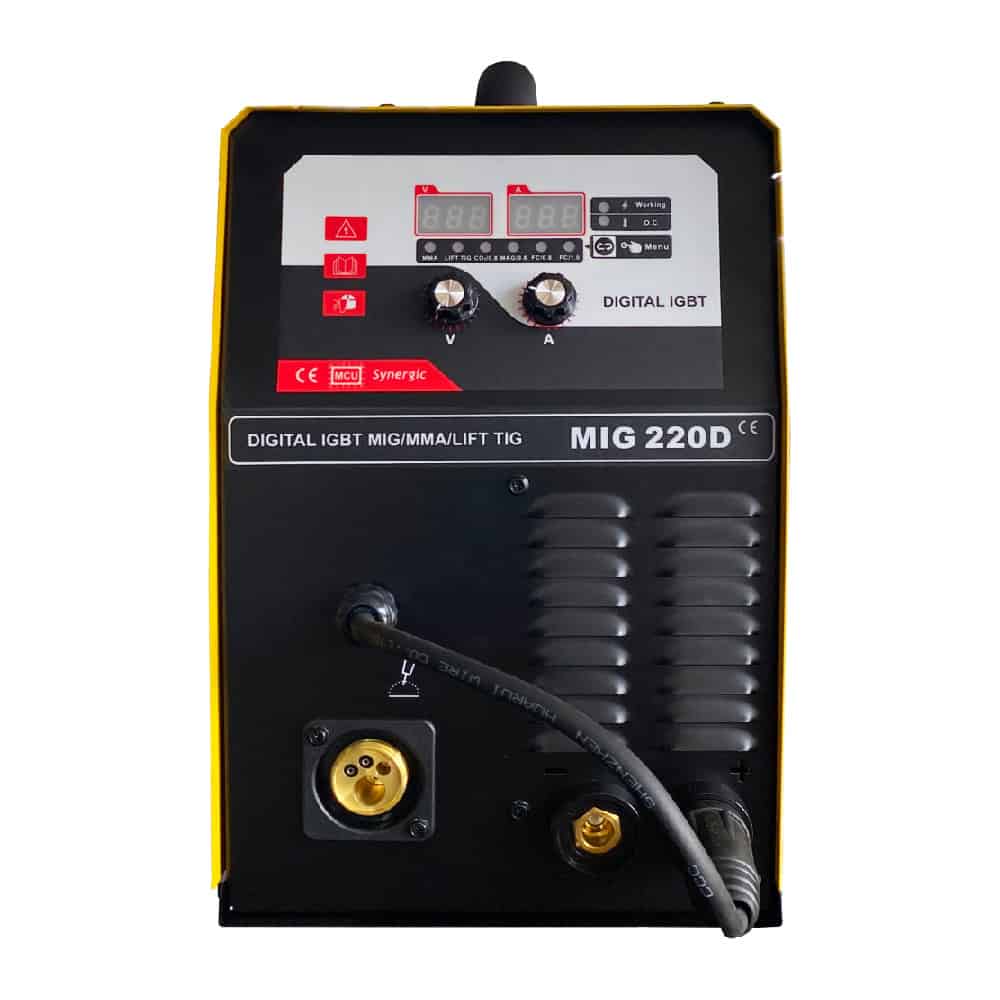

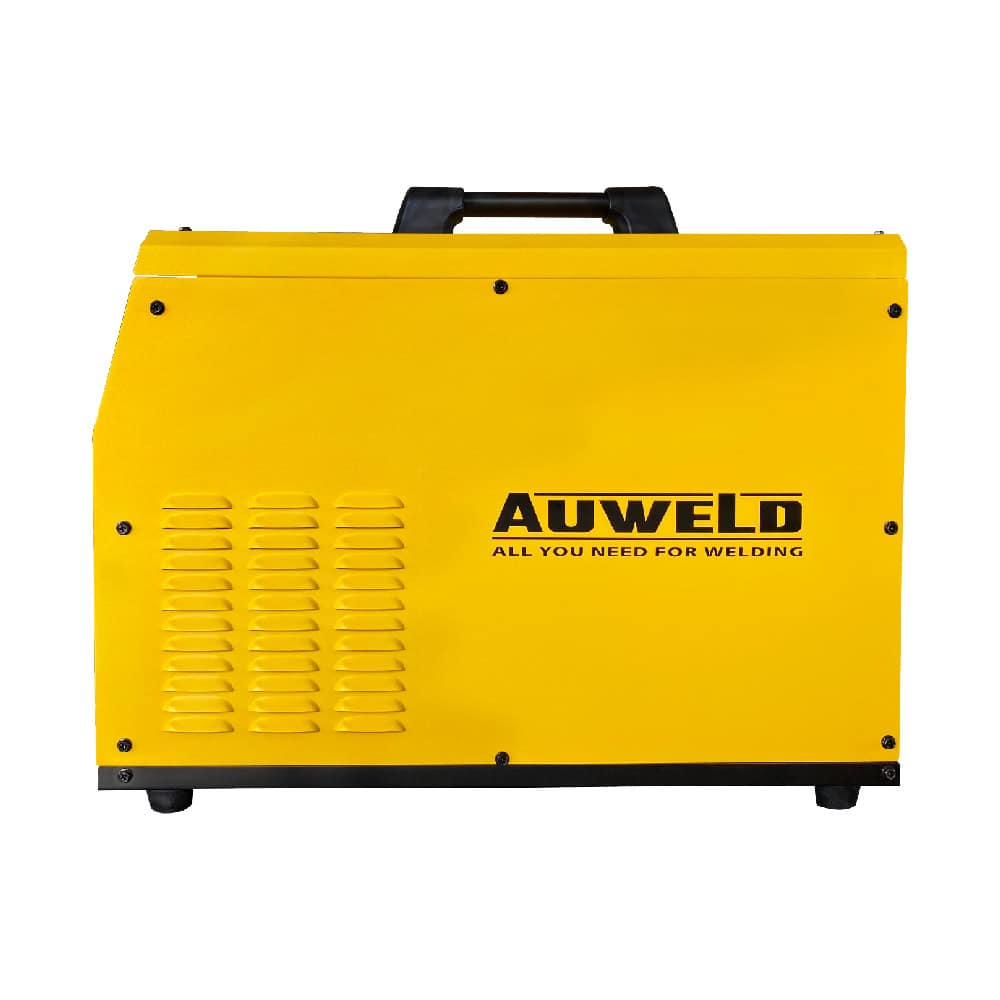

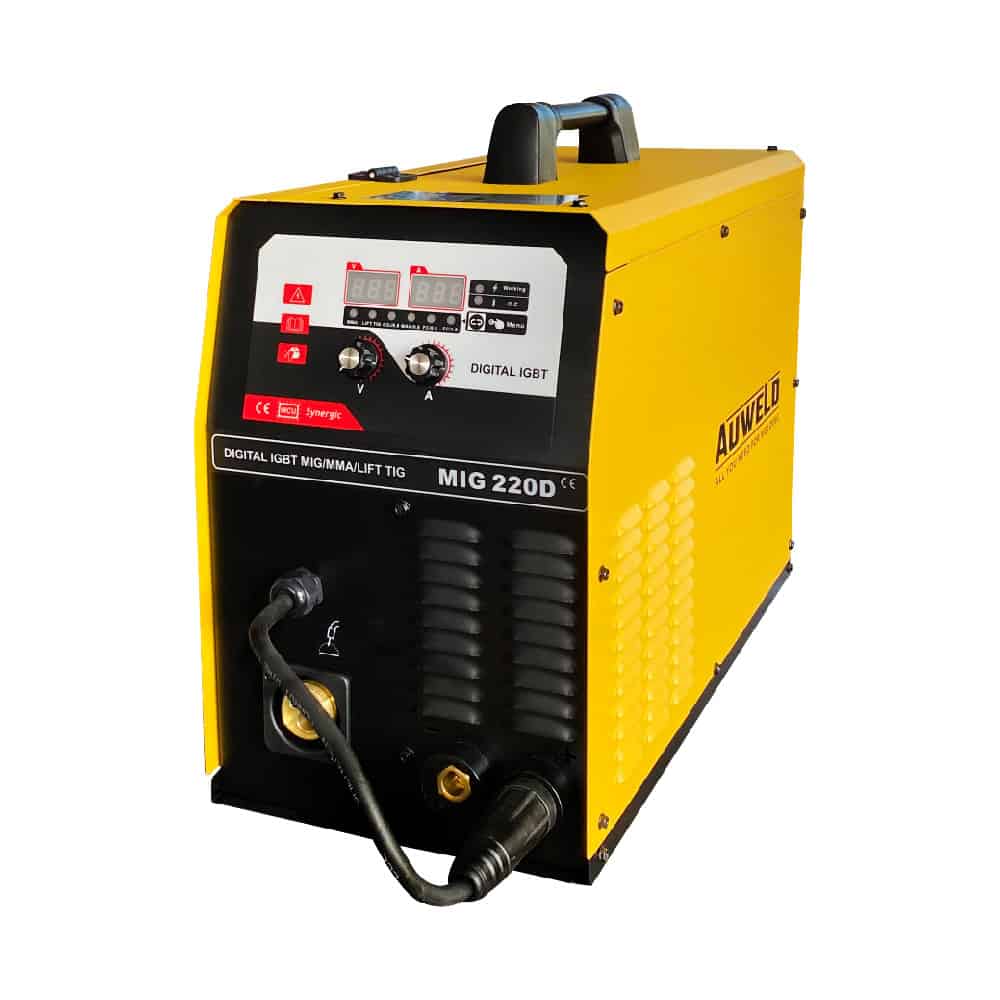

AUWELD MIG 220D MIG/MMA WELDING MACHINE 1PH/220V

Product Specification:

• Welding Process : MIG (GMAW), MMA (SMAW), LIFT TIG
• Input Power Voltage (V) : Single Phase, AC220V±15%
• Input Voltage Frequency (Hz) : 50/60
• Rated Input Current (kVA) : 6.1 (MIG), 5.4 (MMA), 3.3 (LIFT TIG)
• Output Current Range (A) : 20 – 200A (MIG), 20 – 160A (MMA), 20 – 160A (LIFT TIG)
• No Load Voltage (V) : 52
• Duty Cycle (%) : 60
• No Load Consumption :60
• Efficiency (%) : 85
• Power Factor (%) : 0.93
• Insulation Class : F
• Protection Class: IP21S
• Wire Reel (mm): 300
• Product Dimensions : 520mm x 240mm x 360mm
• Product Weight : 12.1 kg
• Industrial Application : Maintenance Repair, Metal Fabrication

Product Features:

• Automatic Overload Protection Function; prevent machine from damage if the duty cycle is exceeded or air flow is blocked.
• Deep welding pool, beautiful welding seam
• Integrated wired feeder and power
• Smooth and spatter-free start
• User-friendly, high welding speed
• Voltage control
• Simple-to-Use Operator Interface
• Industrial Application : Maintenance Repair, Metal Fabrication

Include Item(s):

• 1 pc 15AK MIG Torch (3m)
• 1 pc Welding Cable with Earth Clamp (2m)
• 2 pcs Cable Connector

Picture are for illustration purpose only, actual may vary. Price and specifications are subject to change without prior notice.
