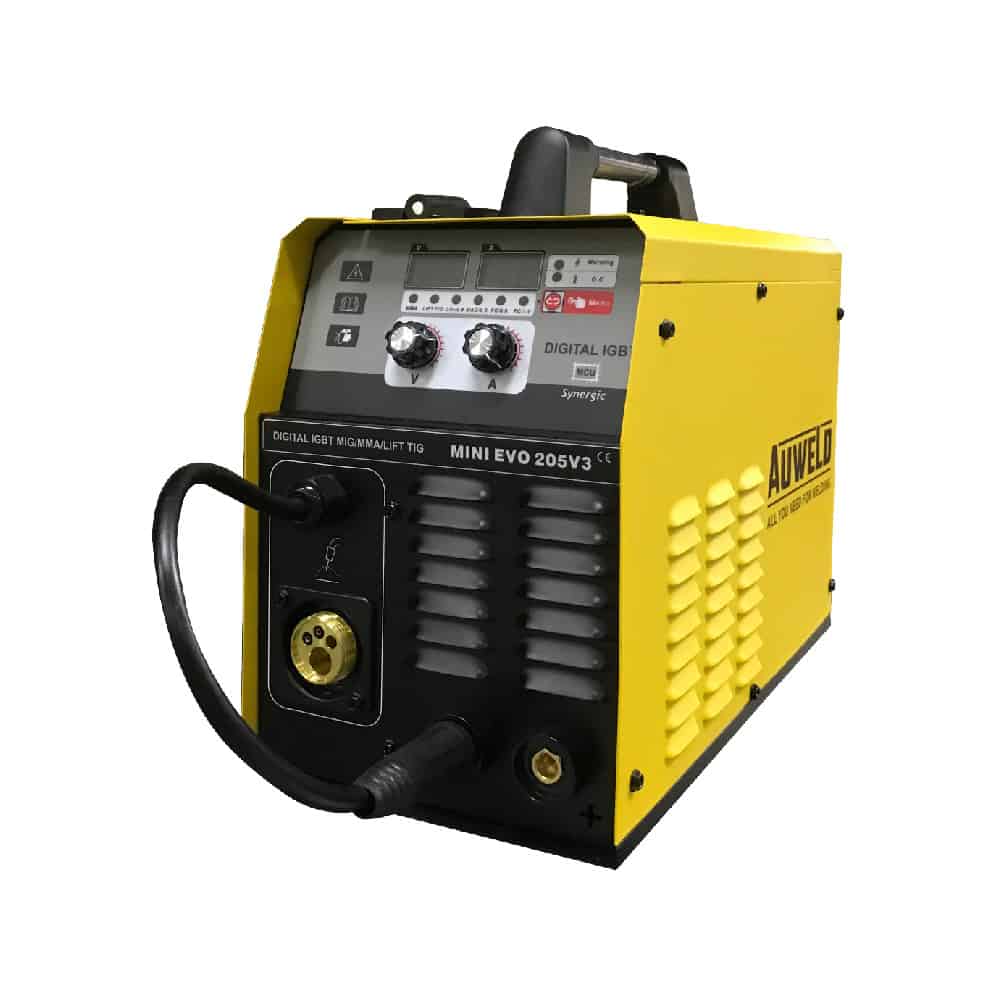

AUWELD MINI EVO-205V3 WELDING MACHINE 1PH/220V

Product Specification:

• Welding Process : MIG (GMAW), MMA (SMAW) , LIFT TIG
• Input Power Voltage (V) : Single Phase, AC220V±10%
• Rated Input Power Capacity (kVA) : 4.5 (MIG), 5.4 (MMA), 3.3 (Lift Tig)
• Input Voltage Frequency (Hz) : 50/60
• Output Current Voltage (A) : 20 – 160
• No Load Voltage (V) : 52
• No Load Consumption (W) : 60
• Insulation Class : F
• Protection Class : IP21S
• Duty Cycle (%) : 60
• Efficiency (%) : 85
• Power Factor (%) : 0.93
• Spool Seiz (mm) : 100
• Wire Feel ≤ (mm) : 200
• Product Dimensions : 420mm x 195  mm x 270 mm
• Product Weight : 9.5 kg
• Industrial Application : Maintenance Repair, Metal Fabrication

Product Features:

• Automatic Overload Protection Function ; prevent machine from damage if the duty cycle is exceeded or air flow is blocked.
• Deep welding pool, beautiful welding seam
• Integrated wired feeder and power
• Smooth and spatter-free start
• User-friendly, high welding speed
• Welding control

Include Item(s):

• 1 pc MB15 MIG Torch (3m)
• 1 pc Welding Cable with Earth Clamp (2m)
• 1 pc Gas Hose (2m)
• 2 pcs Gas Hose Clips
• 1 unit HMG CO2 Flowmeter Regulator

Picture are for illustration purpose only, actual may vary. Price and specifications are subject to change without prior notice.
