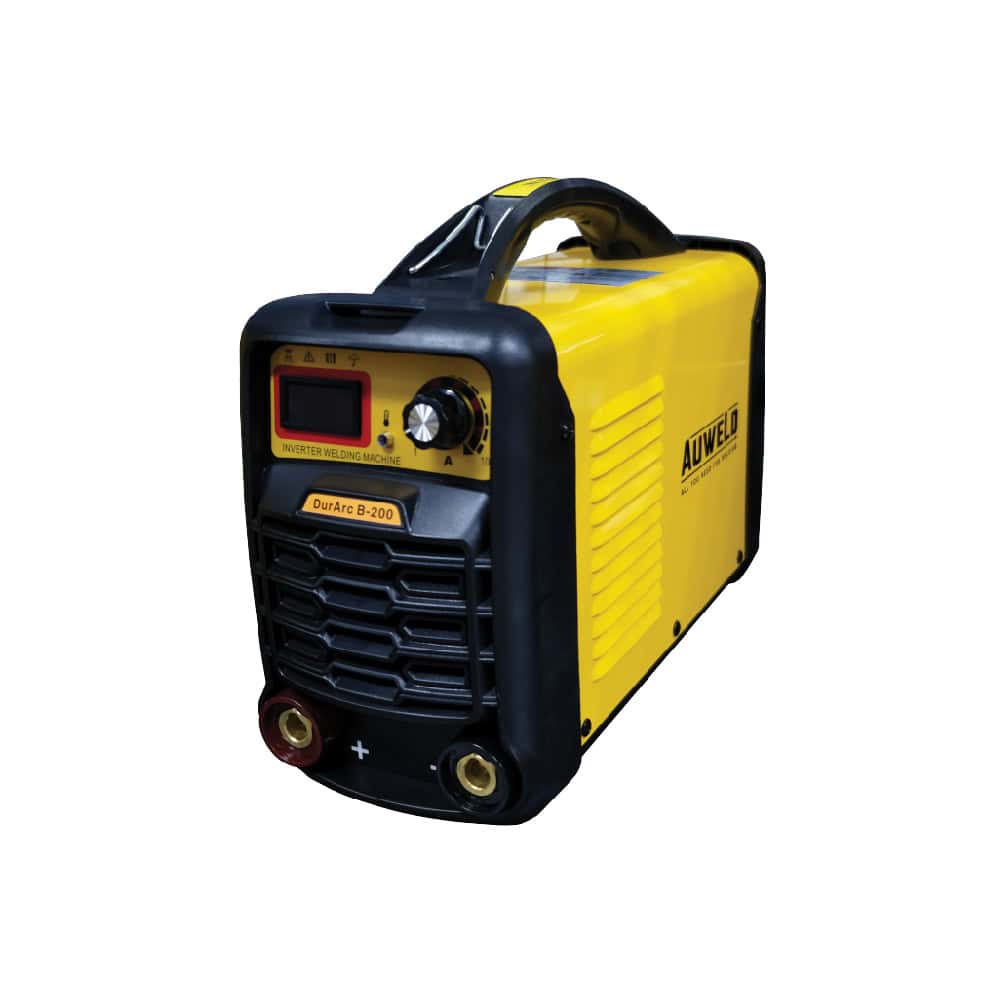

AUWELD DURARC B-200 IGBT INVERTER WELDING MACHINE 1PH/220V

Product Specification:

• Welding Process : MMA (SMAW) , LIFT TIG
• Input Power Voltage (V) : 220V±15%
• Rated Input Power Capacity (kVA) : 7.5
• Input Voltage Frequency (Hz) : 50/60
• Output Current Voltage (A) : 30 – 170
• No Load Voltage (V) : 56
• Insulation Class : F
• Protection Class : IP21S
• Duty Cycle (%) : 60%
• Usable Electrode (mm) : 2.0 – 4.0
• Product Dimensions : 371mm x 155 mm x 295 mm
• Product Weight : 8 kg
• Industrial Application : Maintenance Repair, Metal Fabrication

Product Features:

• Strong, concentrated & stable arc; when stick and work piece get short, its response will be quicker
• Dynamic characteristic; easier to design into welding machine with different dynamic characteristics. It can be adjusted for specialty to make arc softer or harder.
• Electrode material; It can apply to different specifications and materials including acidity, alkalescene, and fibre.
• Multi-use; It can weld stainless steel, alloy steel, carbon steel, copper & other color metal.
• Effective characteristic; power saving, compact, stable arc, good welding pool, high no-load voltage, good capacity of force compensation

Include Item(s):

• 1 pc Welding Shield
• 1 pc Earth Clamp
• 1 pc Electrode Holder

Picture are for illustration purpose only, actual may vary. Price and specifications are subject to change without prior notice.
