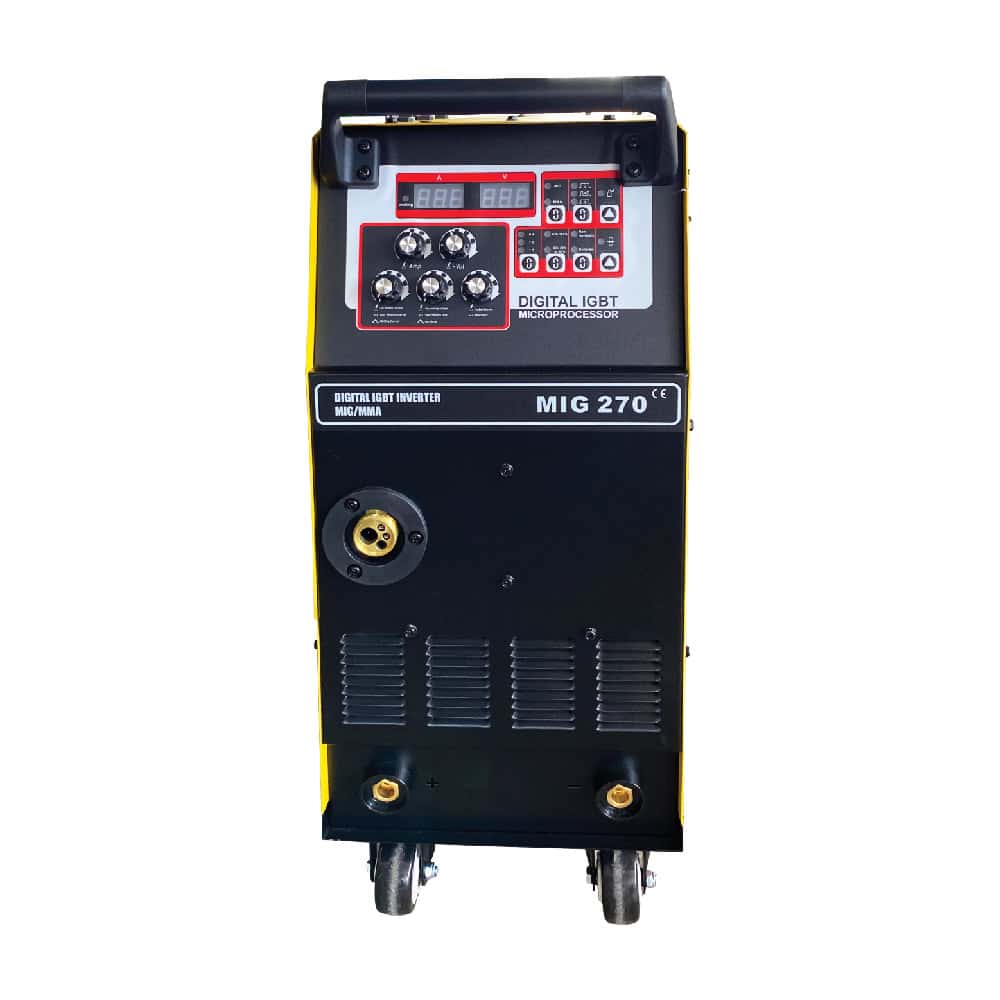

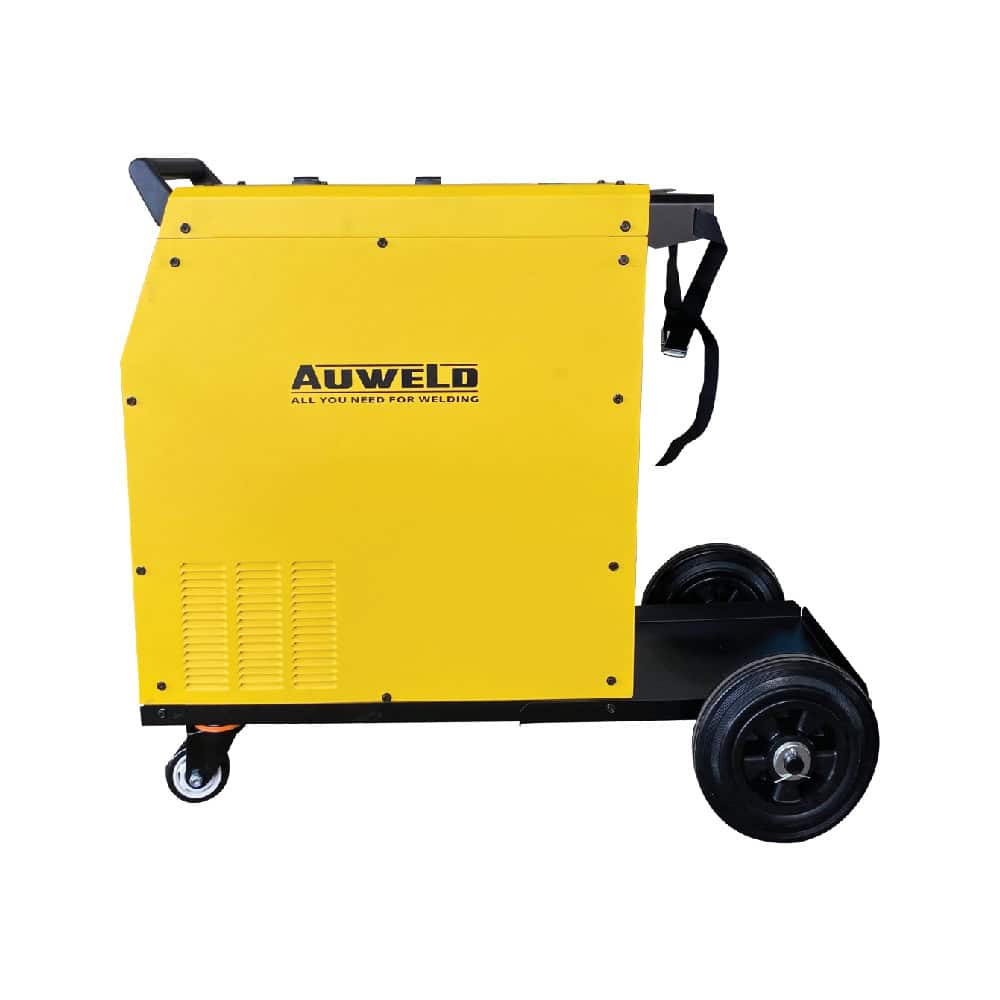

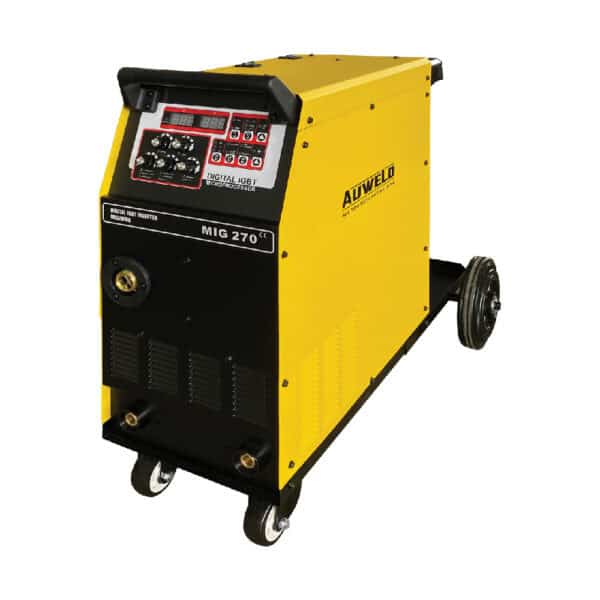

AUWELD MIG 270 WELDING MACHINE 1PH/220V

Product Specification:

• Welding Process : MMA (SMAW) , MIG (GMAW)
• Input Power Voltage (V) : Single Phase, AC220V±15%
• Rated Input Power Capacity (kVA) : 9.4 (MIG), 10.5 (MMA)
• Input Voltage Frequency (Hz) : 50/60
• No Load Voltage (V) : 60
• Output Current Voltage (A) : 20 – 270
• Arc Force Adjustment Range (10A/1) : 0 – 100 (MMA)
• Spot Welding Time : 250ms-5s (MIG)
• Spot Welding Interval : 150ms-4s (MIG)
• Duty Cycle (%) : 60
• No Load Consumption (W) : 60
• Insulation Class : F
• Protection Class : IP21S
• Power Factor : 0.93
• Efficiency (%) : 85
• Spool Size (mm) : 270 – 300
• Product Dimensions : 500mm x 280 mm x 580 mm
• Product Weight : 39.5 kg
• Industrial Application : Maintenance Repair, Metal Fabrication

Product Features:

• Automatic Overload Protection Function; prevent machine from damage if the duty cycle is exceeded or air flow is blocked.
• Deep welding pool, beautiful welding seam
• Integrated wired feeder and power
• Smooth and spatter-free start
• User-friendly, high welding speed
• Voltage control
• Simple-to-Use Operator Interface

Include Item(s):

• 1 pc 15AK MIG Torch (3m)
• 1 pc Welding Cable with Earth Clamp (2m)
• 1 pc Bottle Holder
• 1 pc Gas Hose (2m)

Picture are for illustration purpose only, actual may vary. Price and specifications are subject to change without prior notice.
